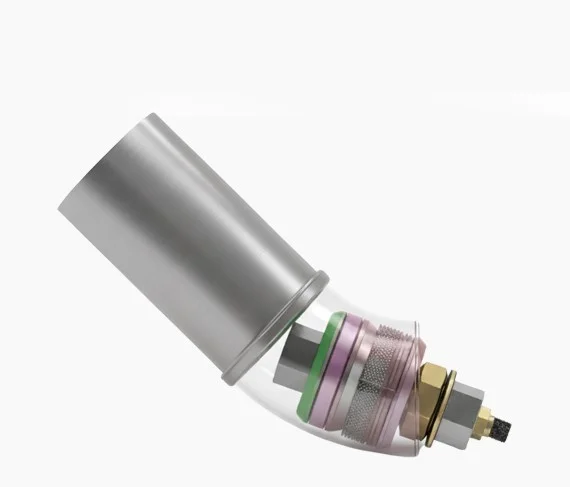

HIGH PRESSURE ELBOW TEST PLUG – INDUSTRIAL PIPE TESTING SOLUTIONS
3/8″ – 48″ (DN10 – DN1200)
15,000 PsiG (1034 BarG)
OUR HIGH PRESSURE ELBOW TEST PLUG IS ENGINEERED FOR SAFE, EFFICIENT PRESSURE TESTING OF LONG-RADIUS ELBOWS IN INDUSTRIAL PIPELINE SYSTEMS. WITH A SELF-ALIGNING DUAL-GRIP SEALING SYSTEM, THIS PLUG AUTOMATICALLY CENTERS INSIDE THE ELBOW — DELIVERING A SECURE, LEAK-FREE SEAL REGARDLESS OF ORIENTATION. PRECISION-MACHINED TO HANDLE EXTREME PRESSURES (UP TO 3048 PSIG / 234 BARG) AND TEMPERATURES FROM –26 °C TO +230 °C, IT PROTECTS THE PIPE’S INTERNAL SURFACE FROM DAMAGE. ITS COMPACT, ROBUST DESIGN SIMPLIFIES INSTALLATION AND REDUCES TESTING TIME — NO WELDING, NO END-CAPS, NO WASTED TIME. IDEAL FOR WORKSHOP OR ON-SITE APPLICATIONS IN OIL, GAS, POWER, OR EPC PIPELINE MAINTENANCE AND FABRICATION.
SPECIFICATIONS
| Parameter | Specification |
| Size Range | 3/8″ – 48″ (DN10 – DN1200) |
| Pressure Range | Up to 3048 PsiG (234 BarG) |
| Temperature Range | −26 °C to +230 °C (−15 °F to +440 °F) |
| Body Material | Carbon Steel / Stainless Steel |
| Seal Materials | PU/NR/FKM |
| Surface Finish | Zinc-Plated, Polished, or Custom-Coated |
| Connection Port | ¼″ NPT or Custom Options |
| Customization | Sizes and materials available upon request |
